![Euro Modular Power Contactor 25A 2NO ECMC Series - Volts 230 AC - Copper coil heavy duty - Low switching noise - Din mounting compact size - fits in MCB Distribution box](http://www.ladderterminal.com/cdn/shop/products/MAIN251_1024x1024.jpg?v=1641898687)
Euro

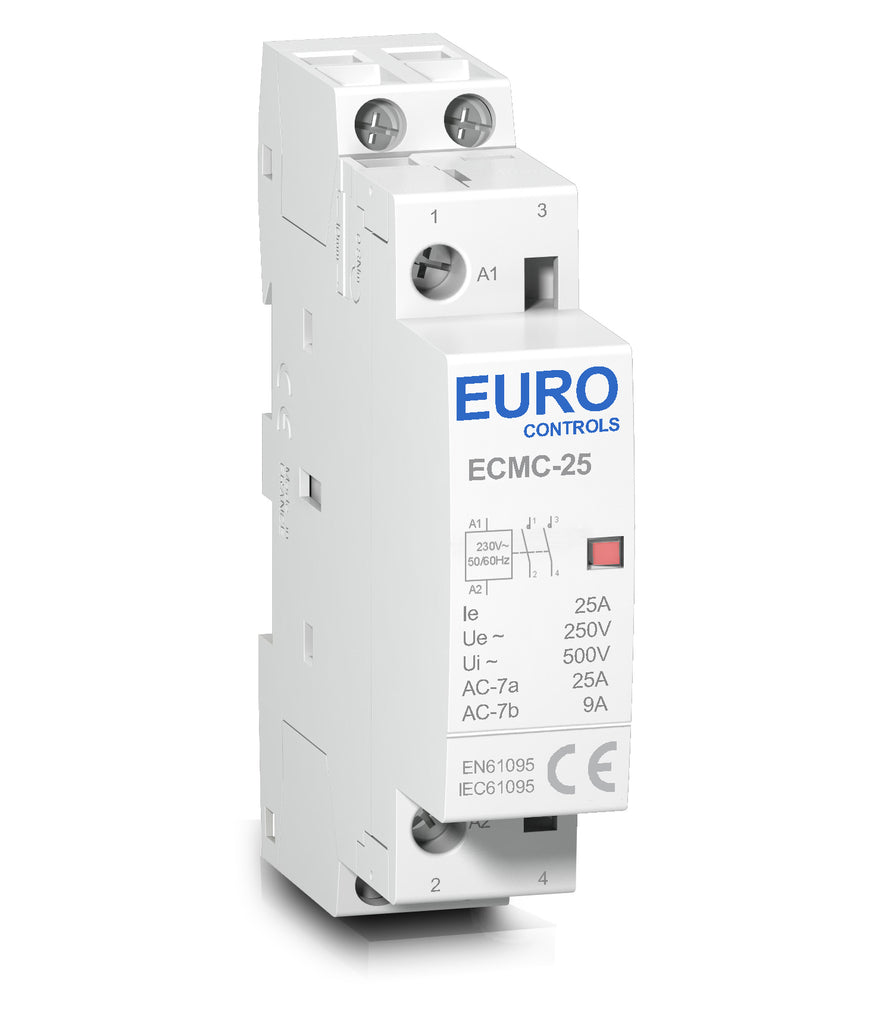

Euro Modular Power Contactor 25A 2NO ECMC Series - Volts 230 AC - Copper coil heavy duty - Low switching noise - Din mounting compact size - fits in MCB Distribution box
![](https://cdn.shopify.com/s/files/1/0819/3759/files/Advantges_single_pole_25a.jpg?v=1641898577)
![](https://cdn.shopify.com/s/files/1/0819/3759/files/EURO_ECMC_CONTACTOR_SINGLE_MODULE_2020.jpg?v=1641888167)
![](https://cdn.shopify.com/s/files/1/0819/3759/files/internal_structure_ecmc_contactor_1P_FINAL_480x480.jpg?v=1641823109)
Salient Features :
Euro ECMC Series Modular Power Contactor 25A 2NO ECMC Series - Volts 230 AC - Copper coil heavy duty - Low switching noise - Din mounting compact size - fits in MCB Distribution box
WORLDS BEST MODULAR POWER CONTACTOR
-
[New] Taiwan Excellence . Euro ECMC Series modular contactors are the finest ultra compact contactors available . These contactors are designed to be used in environments where modularity & Space is the criteria .
-
Heavy duty pure copper wound coil for longer life & corrosion resistance
-
Pure Silver Alloy for Contacts
-
Stainless Steel Screws & Wide Wire Terminals
-
High Quality ABS Flame retardant Enclosure DIN Rail mounting.
-
Ultra Low Switching Noise Less than 15 decibel.
-
Space Saving 75% Smaller than traditional Contactor .
-
Power Saving 70% Lower Power Consumption .
-
CE Certified . Fits onto a standard 35mm din rail & into any distribution box
Technical Specifications :
Contactor Model |
ECMC 18A 2NO |
Rated Isolation Voltage (Ui) V |
500 |
Rated Operating Voltage (Ue) V |
230 |
Thermal Continous Current (Ith) A |
20 |
Rated Working Current (Ie) AC-7a A |
25 |
AC-7b A |
10 |
Rated Working Peak Power (Pe) AC-7a Kw |
4 |
AC-7b A Kw |
1.2 |
Operating times 10 thousand |
>=3 |
Operating Frequency AC-7a turns/hour |
1200 |
AC-7b turns/Hour |
30 |
Connect & Break Capacity AC-7a A |
1.5 Ie |
Connect & Break Capacity AC-7b A |
8 Ie |
Withstand Current (IcW)10S A |
8/Ie AC-7b |
Connecting 1 Wire mm2 |
1-2.5 |
2 wire mm2 |
1-2.5 |
Control power voltage (Us) AC V |
220/230 |
Coil Power W |
1.4 |
